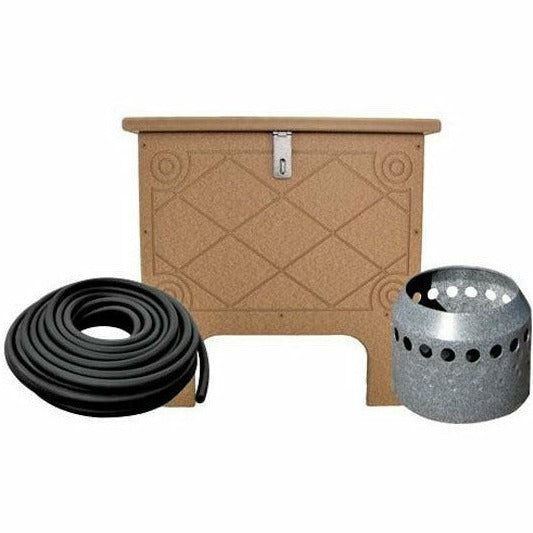

1-Acre ProLake¹ Diffused Pond Aeration System

by ProLake
Original price $2,446.46 - Original price $2,617.34
Original price
$2,446.46
$2,446.46 - $2,617.34
Current price $2,446.46
SKU PL-1.1+

Quick Facts



  • Aerates Ponds/Lakes Up To 1 Acre
  • Improves Water Clarity & Quality
  • Oxygenates Entire Water Column
  • Programmable Timer
  • Available In 115V or 230V
  • 2 Year Warranty
  • ProLake 1.1+ Comes With 100 Feet of Alpine Weighted Airline



Applications



  • HOA’s
  • Golf Courses
  • Recreational Ponds & Lakes
  • Retention Ponds
  • Industrial Retention Ponds
  • Farm Ponds
  • Ski Parks
  • Aquaculture Ponds
  • Zoological Display



Specs

Aeration System

ProLake¹ 1.1+

Item Number

PL-1.1+

Maximum Pond Size

Up To 1 Acre

115V or 230V Compressor

1

Duraplate™ Diffusers

1

Maximum Diffuser Depth

50 Feet

Max CFM

Up To 5.3

AMPS

4.3/115V

Watts

655

Alpine™ 1/2" Weighted Airline

100 Foot Roll

Programmable Timer

1

Manifold

1-4 Port

Pressure Gauge

1

Cooling Fan

1

Level-Aer™ Equipment Pad (Suggested)

Not Included

Decibels/Operational Sound

50/60 DB



Dimensions

Aeration System

ProLake¹ 1.1+

Cabinet

18"W x 18"L x 17"T

Alpine™ ½" Weighted Airline

1/2"ID x 1" OD

Level-Aer™ Equipment Pad

24" x 24" x 3"

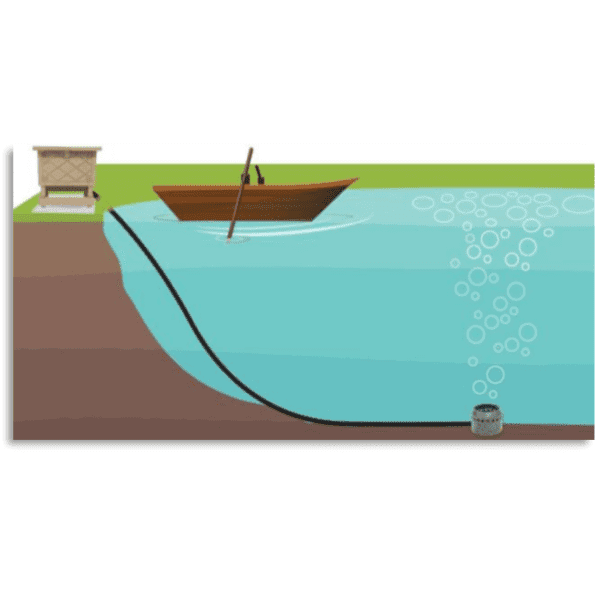

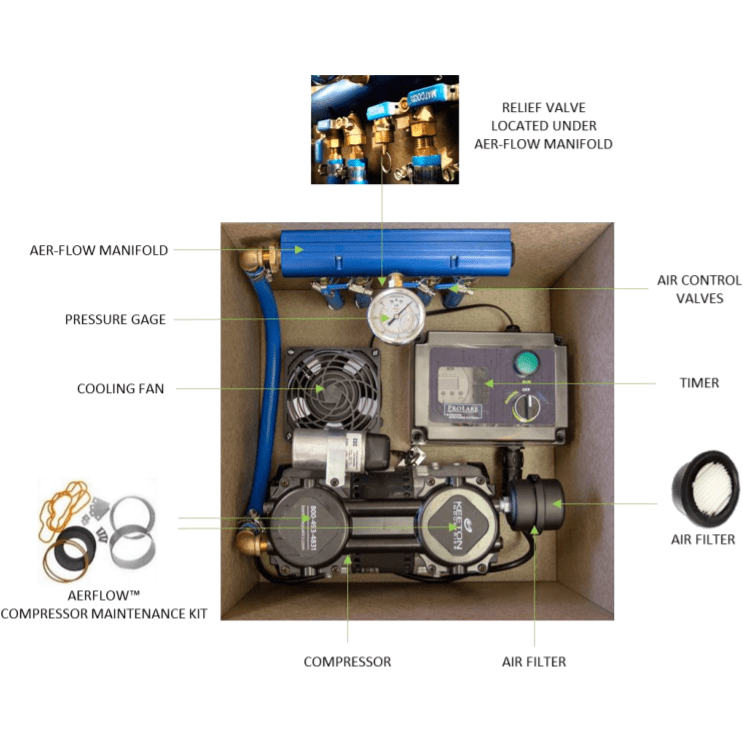

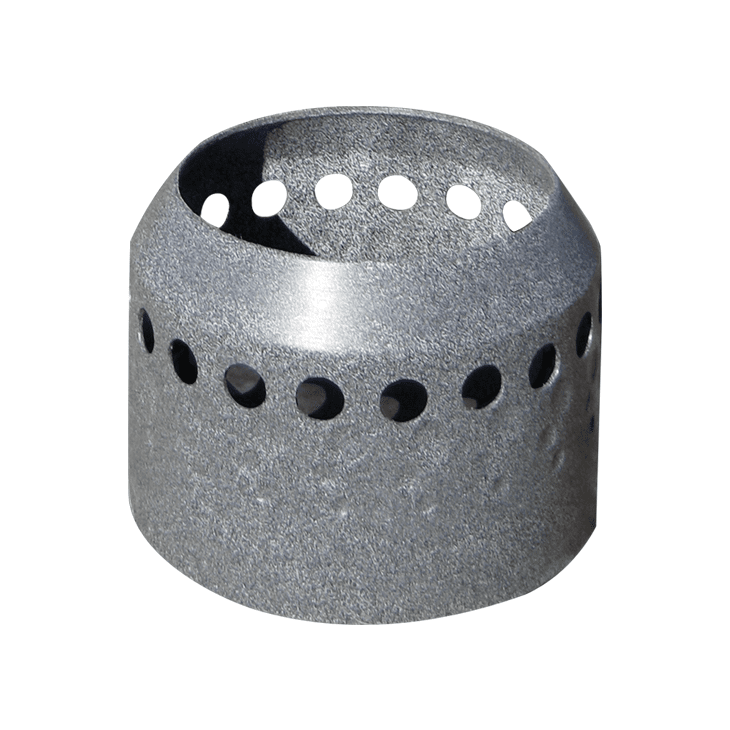

ProLake1 systems offer a powerful ½ horsepower compressor capable of delivering 5.3 cubic feet of air per minute to non-clogging, self-cleaning Duraplate™ diffusers. We top it all off with high volume cooling blowers, fully adjustable, brushed aluminum manifolds and an industry exclusive programmable timer. All housed in a durable, sound-deadening cabinet. The result is a high-end, energy efficient aeration system that will keep your pond clean and problem free for many years to come.

These systems are the ONLY aeration systems in the industry that come with a programmable timer so pond and lake owners can control exact times for when they want to aerate their body of water. ProLake™ UL Listed timers feature seven-day, 24-hour control, power outage back up, manual override, permanent schedule retention and locking hasp.  ProLake™ timers are just another way ProLake™ aeration systems add value and versatility to managing ponds and lakes.

ProLake1 1.1+

  • 1 = Number of Compressors Included In The System
  • 1 = Number of Diffusers Included In The System
  • + = System Includes Rolls of Alpine Weighted Airline.  Amount of Diffusers = Number of 100 Foot Rolls of Alpine Weighted Airline That Are Included. Example: 1 Diffuser = 1 – 100 Foot Roll of Airline.





  • FREE FedEx and UPS GROUND SHIPPING (4-5 DAYS)
  • Ships to: USA (Lower 48 states)
  • PLEASE NOTE: WE DO NOT SHIP TO ANYWHERE OUTSIDE OF THE CONTINENTAL 48 UNITED STATES
  • Shipping & Return Policy
  • Order Tracking

Due to the Covid-19 pandemic, lead times may be longer than normal. Reach out to our team with any questions.
