Lavender Vertex TriPod Commercial Fountain
Light Gray Vertex TriPod Commercial Fountain
Load image into Gallery viewer, Lavender Vertex TriPod Commercial Fountain
Load image into Gallery viewer, Light Gray Vertex TriPod Commercial Fountain
ProtoPond BBB Business Review

Vertex TriPod Commercial Fountain

Vertex Aquatic Solutions

SKU: VTXTP.10.1

$35,160.00
$35,160.00
Sale Sold out
/
Free Shipping
This is a pre order item. We will ship it when it comes in stock.
ProtoPond BBB Business Review



Fountain Features

  • Floating lake fountain designed for large-scale commercial application.
  • Available in 10 HP, 15 HP, 20 HP and 30 HP.
  • Suggested LED Lighting Packages:
      • 6 lights for for 10 HP
      • 7 lights for 15 HP
      • 9 lights for 20 HP and 30 HP



     Motor

    HP

    HT

    1

    HT

    2

    HT

    3
    10 20' 15' 10'
    15 25' 20' 15'
    20 30' 25' 20'
    30 40' 30' 25'



    Warranty Coverage

    All Vertex floating lake fountain designs go through extensive production quality control processes as well as continued testing after installation to ensure your product lasts.

    • Display heads: 4-years
    • Pumps and motors: 4-years
    • LED Lighting: 2-years
    • Control Panel: 1-year



    Description

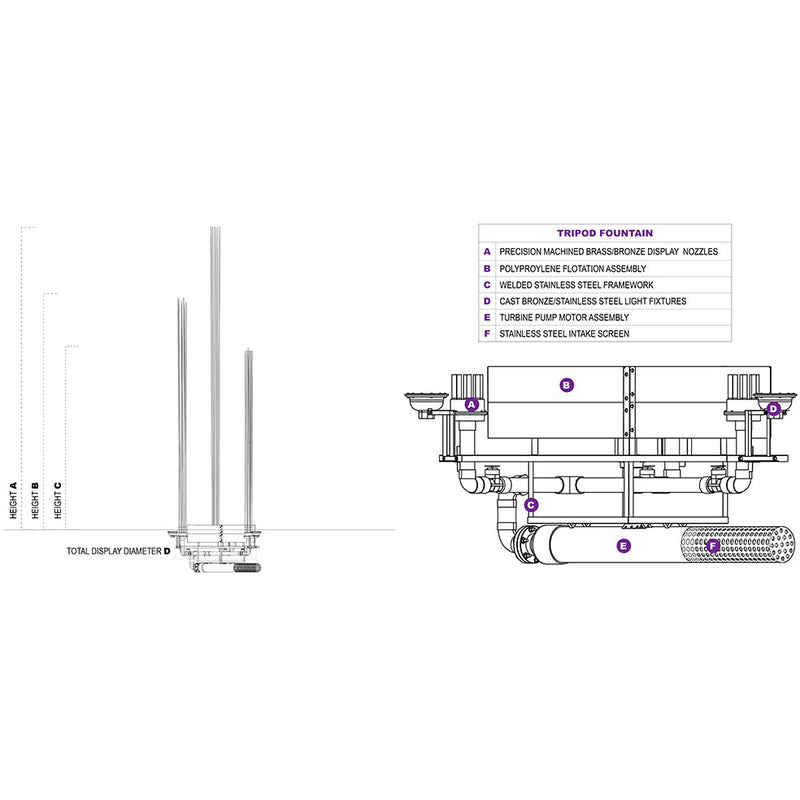

    The TriPod floating fountain series features three progressive columns of frothy water, each 8" in diameter, that come together to create a truly unique and stunning water feature. The height proportions of each column can be easily adjusted on site by regulating the valves of each pod, allowing for customizable modifications.

    Constructed with fully waterproof components made of high-quality corrosion-resistant materials, the TriPod floating lake fountains are designed to provide years of dependable and high-performance use. Equipped with a UL listed control panel and heavy-duty submersible turbine pump, these fountains offer reliable and consistent operation.



    Nozzles

    • Precision machined brass/bronze or stainless steel nozzles.



    Pumps/Motors

    • High performance turbine pump/motor assembly
    • Stainless steel construction
    • Water cooled: no oils, seals or o-rings to replace
    • 4 year warranty



    Flotation

    • Rotocast polypropylene with UV inhibitors for long life
    • Individual leveling compartments for exact adjustments
    • 4 year warranty



    Control Panel

    • UL listed per National Electrical Code
    • Weatherproof steel enclosures



    Submersible Light Fixtures

    • 43Watt, 120V clear, stainless steel LED light fixtures with tempered lens and neoprene gaskets, mounting brackets and fastenings of stainless steel
    • Energy efficient LED, 140 lumens
    • Stainless steel housing
    • 2 year warranty



    Cables

    • STW-A rated
    • 4 year warranty



    Minimum Water Depth

     Motor

    HP

    Minimum

    Depth
    10 6'
    15 7'
    20 7'
    30 8'



    Electrical Specs

     Motor

    HP



    Total

    Wattage



    Amp

    Draw



    Available

    Phase
    10 258W
    		 3
    		 1,3
    15 301W
    		 3.5
    		 1,3
    20 387W
    		 4.5
    		 3
    30 387W
    		 4.5
    		 3



    Documentation

    Vertex TriPod Brochure

    Vertex TriPod System Specifications

    Vertex Fountain Owners Manual

    Please see below for maximum cable lengths. All cable is sold in 25' increments.



    Single Phase: 230V 60HZ

     HP 14/4 12/4 10/4 8/4 6/4 4/4 2/4
    2 150' 250' 400'
    3 125' 200' 300' 400'
    5 175' 275' 400'
    7.5 200' 300' 400'
    10 150' 250' 400'
    15 200' 300' 400'



    3-Phase: 230V 60HZ

     HP 14/4 12/4 10/4 8/4 6/4 4/4 2/4
    2 275' 400'
    3 200' 400'

    5 225' 325'
    		 400'
    7.5 225' 350' 400'
    10 275' 400'
    15 300' 400'
    20 200' 350' 400'
    25 275' 400'
    30 300'



    3-Phase: 208V 60HZ

     HP 14/4 12/4 10/4 8/4 6/4 4/4 2/4
    2 225' 400'
    3 175' 300' 400'
    5 175' 300'
    		 400'
    7.5 200' 300' 400'
    10 225' 350' 400'
    15 250' 400'
    20
    		300' 400'
    25
    		375'
    30 300'



    3-Phase: 460V 60HZ

     HP 14/4 12/4 10/4 8/4
    2 400'
    3 400'
    5 400'
    7.5 400'
    10 300' 400'
    15 400'
    20 400'
    25 400'
    30 400'
    • FREE ground shipping and motor freight on all orders.

    • Ships to: USA (Lower 48 states)

    • If you require expedited or international shipping, please contact us.
