Vertex TriGeyser Commercial Fountain

Regular price $27,170.00
Sale price $27,170.00 Regular price
Sale Sold out
Unit price
/per
This is a pre order item. We will ship it when it comes in stock.


Fountain Features

  • Floating lake fountain designed for large-scale commercial application.
  • Available in 10 HP, 15 HP, 20 HP and 30 HP.
  • Suggested LED Lighting Packages:
      • 6 lights for all sizes


     Motor

    HP

    HT

    1

    HT

    2

    HT

    3

    Diam.

    10 15' 10' 6' 8'
    15 18' 12' 8' 9'
    20 22' 15' 10' 10'
    30 25' 18' 12' 12'


    Warranty Coverage

    All Vertex floating lake fountain designs go through extensive production quality control processes as well as continued testing after installation to ensure your product lasts.

    • Display heads: 4-years
    • Pumps and motors: 4-years
    • LED Lighting: 2-years
    • Control Panel: 1-year



    Description

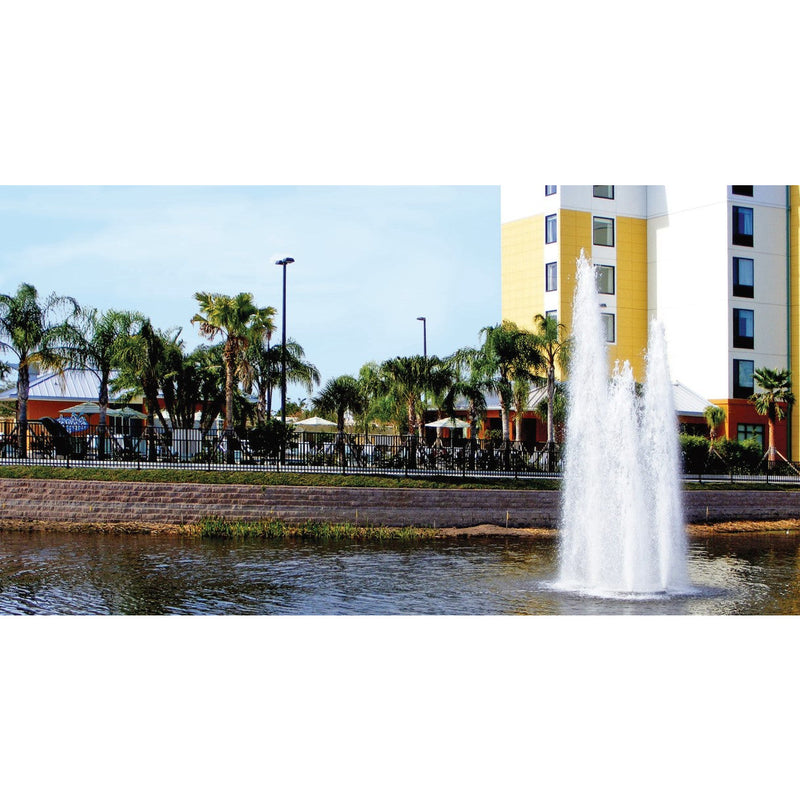

    The TriGeyser floating fountain series features three heavily aerated and conical displays that come together to create an impressive pyramid of water, making it a truly unique and stunning water feature. The height proportions of each display can be easily adjusted on site by regulating the valves of each pod, allowing for customizable modifications.

    Built with fully waterproof components made of high-quality corrosion-resistant materials, the TriGeyser floating lake fountain line is designed to provide years of dependable and high-performance use. Equipped with a UL listed control panel and heavy-duty submersible turbine pump, these fountains offer reliable and consistent operation.

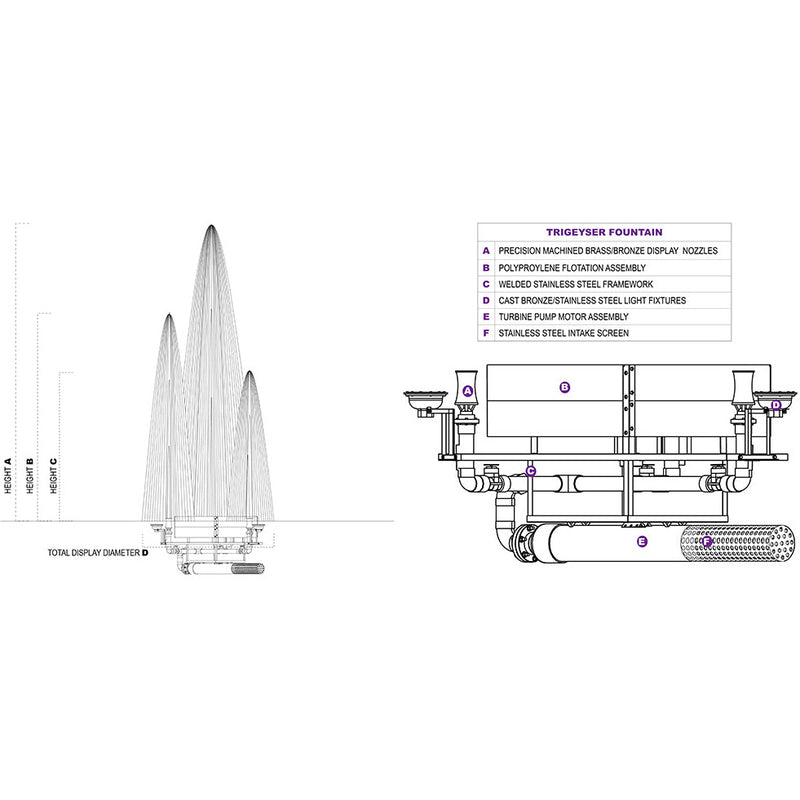

    Nozzles

    • Precision machined brass/bronze or stainless steel nozzles.


    Pumps/Motors

    • High performance turbine pump/motor assembly
    • Stainless steel construction
    • Water cooled: no oils, seals or o-rings to replace
    • 4 year warranty


    Flotation

    • Rotocast polypropylene with UV inhibitors for long life
    • Individual leveling compartments for exact adjustments
    • 4 year warranty


    Control Panel

    • UL listed per National Electrical Code
    • Weatherproof steel enclosures


    Submersible Light Fixtures

    • 43Watt, 120V clear, stainless steel LED light fixtures with tempered lens and neoprene gaskets, mounting brackets and fastenings of stainless steel
    • Energy efficient LED, 140 lumens
    • Stainless steel housing
    • 2 year warranty


    Cables

    (NOT INCLUDED IN LISTED PRICE)

    - Call for price on cable

    • STW-A rated
    • 4 year warranty


    Minimum Water Depth

     Motor

    HP

    Minimum

    Depth

    10 6'
    15 7'
    20 7'
    30 8'


    Electrical Specs

     Motor

    HP


    Total

    Wattage


    Amp

    Draw


    Available

    Phase

    10 258W
    3
    1,3
    15 258W 3
    1,3
    20 258W 3
    3
    30 258W 3
    3


    Documentation

    Vertex TriGeyser Brochure

    Vertex TriGeyser System Specifications

    Vertex Fountain Owners Manual

    Please see below for maximum cable lengths. All cable is sold in 25' increments.


    Single Phase: 230V 60HZ

     HP 14/4 12/4 10/4 8/4 6/4 4/4 2/4
    2 150' 250' 400'
    3 125' 200' 300' 400'
    5 175' 275' 400'
    7.5 200' 300' 400'
    10 150' 250' 400'
    15 200' 300' 400'


    3-Phase: 230V 60HZ

     HP 14/4 12/4 10/4 8/4 6/4 4/4 2/4
    2 275' 400'
    3 200' 400'

    5 225' 325'
    400'
    7.5 225' 350' 400'
    10 275' 400'
    15 300' 400'
    20 200' 350' 400'
    25 275' 400'
    30 300'


    3-Phase: 208V 60HZ

     HP 14/4 12/4 10/4 8/4 6/4 4/4 2/4
    2 225' 400'
    3 175' 300' 400'
    5 175' 300'
    400'
    7.5 200' 300' 400'
    10 225' 350' 400'
    15 250' 400'
    20
    300' 400'
    25
    375'
    30 300'


    3-Phase: 460V 60HZ

     HP 14/4 12/4 10/4 8/4
    2 400'
    3 400'
    5 400'
    7.5 400'
    10 300' 400'
    15 400'
    20 400'
    25 400'
    30 400'
