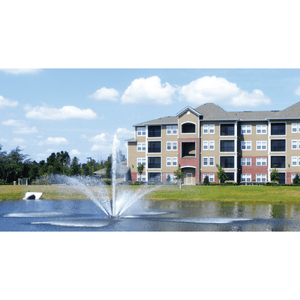

Vertex FanJet Commercial Fountain

Vendor Vertex Aquatic Solutions

SKU: VTXFJ.10.1.230

Regular price $33,360.00
Sale price $33,360.00 Regular price
Sale Sold out
Unit price
/per
Free Shipping
This is a pre order item. We will ship it when it comes in stock.



Fountain Features

  • Floating lake fountain designed for large-scale commercial application.
  • Available in 10 HP, 15 HP, 20 HP and 30 HP.
  • Suggested LED Lighting Packages
      • 7 lights for 10 HP
      • 7 lights for 15 HP
      • 9 lights for 20 HP and 30 HP



     Motor

    HP

    Center

    Height

    Side

    Height

    Spray

    Diameter

    10 25' 8' 35'
    15 30' 10' 40'
    20 35' 12' 45'
    30 45' 15' 50'



    Warranty Coverage

    All Vertex floating lake fountain designs go through extensive production quality control processes as well as continued testing after installation to ensure your product lasts.

    • Display heads: 4-years
    • Pumps and motors: 4-years
    • LED Lighting: 2-years
    • Control Panel: 1-year



    Description

    The Vertex FanJet floating fountain is a robust water feature created primarily for commercial projects such as business parks, golf courses, municipal ponds, and lakes, and similar applications. With its towering height, graceful arches, and superior wind resistance, this impressive fountain produces a dramatic water display that enhances the aesthetics of any commercial setting.

    The FanJet's powerful jets have a diameter of up to 50 feet and reach a height of 45 feet. Its components are fully waterproof and made of the finest corrosion-resistant materials, guaranteeing years of reliable and high-performance use. The fountain is operated by a UL listed control panel and a heavy-duty submersible turbine pump, both designed to withstand the elements and provide consistent operation.

    This fountain is engineered for efficiency and low amp draw, making it an ideal option for those who prioritize quality and durability in their water features. Its stunning design and exceptional performance make it a striking centerpiece that adds a touch of elegance to any large-scale commercial project.



    Nozzles

    • Precision machined brass/bronze or stainless steel nozzles.



    Pumps/Motors

    • High performance turbine pump/motor assembly
    • Stainless steel construction
    • Water cooled: no oils, seals or o-rings to replace
    • 4 year warranty



    Flotation

    • Rotocast polypropylene with UV inhibitors for long life
    • Individual leveling compartments for exact adjustments
    • 4 year warranty



    Control Panel

    • UL listed per National Electrical Code
    • Weatherproof steel enclosures



    Submersible Light Fixtures

    • 43Watt, 120V clear, stainless steel LED light fixtures with tempered lens and neoprene gaskets, mounting brackets and fastenings of stainless steel
    • Energy efficient LED, 140 lumens
    • Stainless steel housing
    • 2 year warranty



    Cables

    • STW-A rated
    • 4 year warranty



    Minimum Water Depth

     Motor

    HP

    Minimum

    Depth

    10 6'
    15 7'
    20 7'
    30 8'



    Electrical Specs

     Motor

    HP



    Total

    Wattage



    Amp

    Draw



    Available

    Phase

    10 387W
    4.5
    1,3
    15 430W
    5
    1,3
    20 473W
    5.5
    3
    30 473W
    5.5
    3



    Documentation

    Vertex FanJet System Specifications

    Vertex Fountain Owners Manual

    Vertex FanJet Brochure

    Please see below for maximum cable lengths. All cable is sold in 25' increments.



    Single Phase: 230V 60HZ

     HP 14/4 12/4 10/4 8/4 6/4 4/4 2/4
    2 150' 250' 400'
    3 125' 200' 300' 400'
    5 175' 275' 400'
    7.5 200' 300' 400'
    10 150' 250' 400'
    15 200' 300' 400'



    3-Phase: 230V 60HZ

     HP 14/4 12/4 10/4 8/4 6/4 4/4 2/4
    2 275' 400'
    3 200' 400'

    5 225' 325'
    400'
    7.5 225' 350' 400'
    10 275' 400'
    15 300' 400'
    20 200' 350' 400'
    25 275' 400'
    30 300'



    3-Phase: 208V 60HZ

     HP 14/4 12/4 10/4 8/4 6/4 4/4 2/4
    2 225' 400'
    3 175' 300' 400'
    5 175' 300'
    400'
    7.5 200' 300' 400'
    10 225' 350' 400'
    15 250' 400'
    20
    300' 400'
    25
    375'
    30 300'



    3-Phase: 460V 60HZ

     HP 14/4 12/4 10/4 8/4
    2 400'
    3 400'
    5 400'
    7.5 400'
    10 300' 400'
    15 400'
    20 400'
    25 400'
    30 400'
    • FREE ground shipping and motor freight on all orders.

    • Ships to: USA (Lower 48 states)

    • If you require expedited or international shipping, please contact us.
