4-Acre ProLake¹ Diffused Pond Aeration System

by ProLake
Original price $3,468.50 - Original price $3,639.38
Original price
$3,468.50
$3,468.50 - $3,639.38
Current price $3,468.50
SKU PL-1.4+

Quick Facts



  • Aerates Ponds/Lakes Up To 4 Acres
  • Improves Water Clarity & Quality
  • Oxygenates Entire Water Column
  • Programmable Timer
  • Available In 115V or 230V
  • 2 Year Warranty
  • ProLake 1.4+ Comes With 400 Feet of Alpine Weighted Airline



Applications



  • HOA’s
  • Golf Courses
  • Recreational Ponds & Lakes
  • Retention Ponds
  • Industrial Retention Ponds
  • Farm Ponds
  • Ski Parks
  • Aquaculture Ponds
  • Zoological Display



Specs



Aeration System

ProLake² 1.4+

Item Number

PL-1.4+

Maximum Pond Size

Up To 4 Acres

115V or 230V Compressor

1

Duraplate™ Diffusers

4

Maximum Diffuser Depth

50 Feet

Max CFM

Up To 5.3

AMPS

4.3/115V

Watts

655

Alpine™ 1/2" Weighted Airline

4-100 Foot Rolls

Programmable Timer

1

Manifold

1-4 Port

Pressure Gauge

1

Cooling Fan

1

Level-Aer™ Equipment Pad (Suggested)

Not Included

Decibels/Operational Sound

50/60 DB



Dimensions



Aeration System

ProLake¹ 1.4+

Cabinet

18"W x 18"L x 17"T

Alpine™ ½" Weighted Airline

1/2"ID x 1" OD

Level-Aer™ Equipment Pad

24" x 24" x 4"

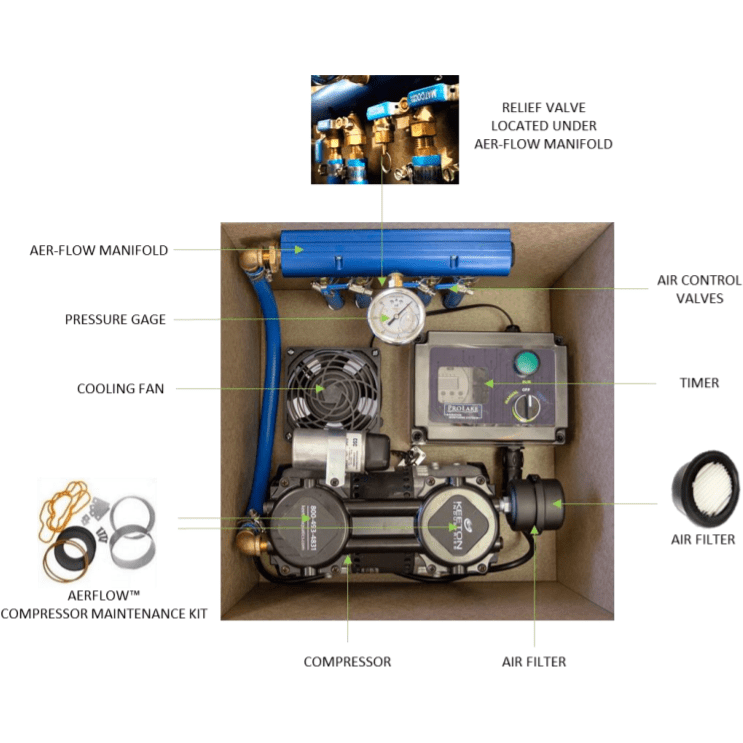

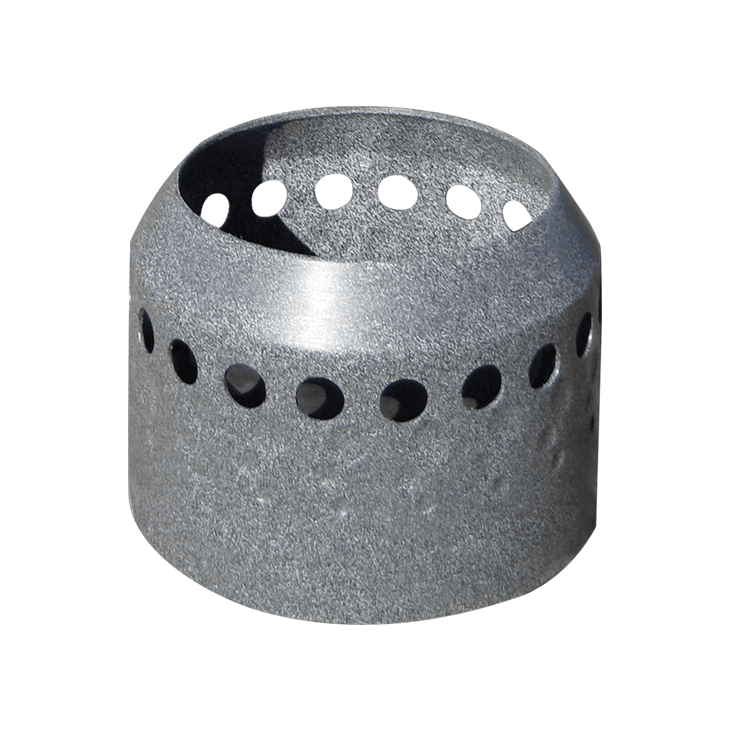

ProLake1 systems offer a powerful ½ horsepower compressor capable of delivering 5.3 cubic feet of air per minute to non-clogging, self-cleaning Duraplate™ diffusers. They top it all off with high volume cooling blowers, a programmable timer and fully adjustable, brushed aluminum manifolds. All housed in a durable, sound-deadening cabinet. The result is a high-end, energy efficient aeration system that will keep your pond clean and problem free for many years to come.

ProLake1 1.4+

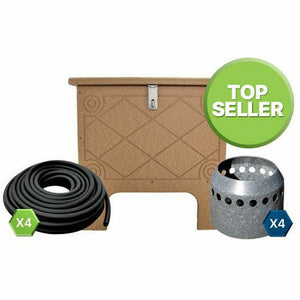

  • 1 = Number of Compressors Included In The System
  • 4 = Number of Diffusers Included In The System
  • + = System Includes Rolls of Alpine Weighted Airline. Amount of Diffusers = Number of 100 Foot Rolls of Alpine Weighted Airline That Are Included.
  • Example: 1 Diffuser = 1 – 100 Foot Roll of Airline.





    • FREE FedEx and UPS GROUND SHIPPING (4-5 DAYS)
    • Ships to: USA (Lower 48 states)
    • PLEASE NOTE: WE DO NOT SHIP TO ANYWHERE OUTSIDE OF THE CONTINENTAL 48 UNITED STATES
    • Shipping & Return Policy
    • Order Tracking

    Due to the Covid-19 pandemic, lead times may be longer than normal. Reach out to our team with any questions.

    Customer Reviews

    No reviews yet
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)

    It's simple! When you order an item from ProtoPond, you unlock free lifetime replacement parts for that item. Whether it's a fountain, aerator, circulator, filtration system, etc., we offer lifetime-guaranteed free replacement parts! If you are a past customer of ours and need to order a replacement part, simply call our office at (515) 635-3182 or email support@protopond.com and one of our team members will assist you with your FREE replacement part.

    \
