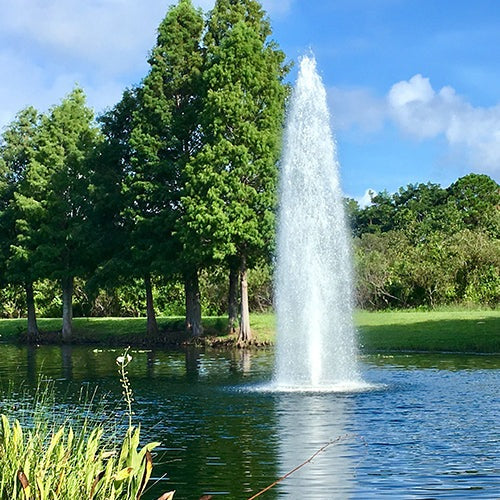

Vertex GeyserJet Commercial Fountain

Regular price $12,200.00
Sale price $12,200.00 Regular price
Sale Sold out
Unit price
/per
Description
This is a pre order item. We will ship it when it comes in stock.


Fountain Features

  • Floating lake fountain designed for large-scale commercial application.
  • Available in 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP, and 20 HP.
  • Suggested LED Lighting Packages:
    • 2 lights for 2 HP and 3 HP
    • 3 lights for 5 HP
    • 4 lights for 7.5 HP and 10 HP
    • 5 lights for 15 HP
    • 6 lights for 20 HP


 Motor

HP

Spray

Height

Spray

Diameter

2 8' 4'
3 12' 4'
5 18' 5'
7.5 22' 6'
10 25' 4'
15 28' 8'
20 30' 8'


Warranty Coverage

All Vertex floating lake fountain designs go through extensive production quality control processes as well as continued testing after installation to ensure your product lasts.

  • Display heads: 4-years
  • Pumps and motors: 4-years
  • LED Lighting: 2-years
  • Control Panel: 1-year



Description

The GeyserJet floating fountain series creates a bold statement with its white and frothy activity, producing a visually striking display. Its heavy and wind-resistant design makes it highly visible during the day and a dramatic focal point at night, especially when illuminated to showcase its dense and aerated pattern.

Constructed with fully waterproof components made of high-quality corrosion-resistant materials, all GeyserJet lake fountains are dependable and provide exceptional performance for years to come. They are powered by a heavy-duty submersible turbine pump and UL listed control panel, ensuring consistent and reliable operation.

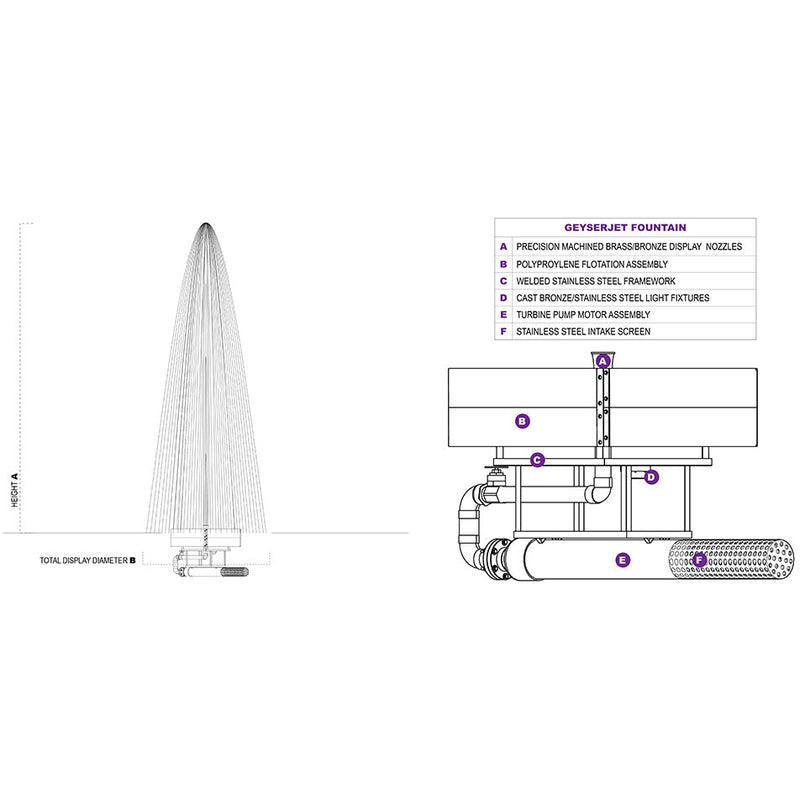

Nozzles

  • Precision machined brass/bronze or stainless steel nozzles.


Pumps/Motors

  • High performance turbine pump/motor assembly
  • Stainless steel construction
  • Water cooled: no oils, seals or o-rings to replace
  • 4 year warranty


Flotation

  • Rotocast polypropylene with UV inhibitors for long life
  • Individual leveling compartments for exact adjustments
  • 4 year warranty


Control Panel

  • UL listed per National Electrical Code
  • Weatherproof steel enclosures


Submersible Light Fixtures

  • 43Watt, 120V clear, stainless steel LED light fixtures with tempered lens and neoprene gaskets, mounting brackets and fastenings of stainless steel
  • Energy efficient LED, 140 lumens
  • Stainless steel housing
  • 2 year warranty


Cables

(NOT INCLUDED IN LISTED PRICE)

- Call for price on cable

  • STW-A rated
  • 4 year warranty


Minimum Water Depth

 Motor

HP

Minimum

Depth

2 3'
3 3'
5 4'
7.5 5'
10 6'
15 7'
20 7'


Electrical Specs

 Motor

HP


Total

Wattage


Amp

Draw


Available

Phase

2 86W 1 1,3
3 86W 1 1,3
5 129W 1.5
1,3
7.5 172W 2
1,3
10 172W 2
1,3
15 215W 2.5 1,3
20 258W 3 3


Documentation

Vertex GeyserJet Brochure

Vertex GeyserJet System Specifications

Vertex Fountain Owners Manual

Please see below for maximum cable lengths. All cable is sold in 25' increments.


Single Phase: 230V 60HZ

 HP 14/4 12/4 10/4 8/4 6/4 4/4 2/4
2 150' 250' 400'
3 125' 200' 300' 400'
5 175' 275' 400'
7.5 200' 300' 400'
10 150' 250' 400'
15 200' 300' 400'


3-Phase: 230V 60HZ

 HP 14/4 12/4 10/4 8/4 6/4 4/4 2/4
2 275' 400'
3 200' 400'

5 225' 325'
400'
7.5 225' 350' 400'
10 275' 400'
15 300' 400'
20 200' 350' 400'
25 275' 400'
30 300'


3-Phase: 208V 60HZ

 HP 14/4 12/4 10/4 8/4 6/4 4/4 2/4
2 225' 400'
3 175' 300' 400'
5 175' 300'
400'
7.5 200' 300' 400'
10 225' 350' 400'
15 250' 400'
20
300' 400'
25
375'
30 300'


3-Phase: 460V 60HZ

 HP 14/4 12/4 10/4 8/4
2 400'
3 400'
5 400'
7.5 400'
10 300' 400'
15 400'
20 400'
25 400'
30 400'
