1-Acre PA34 Sentinel Deluxe Pond Aerator

• Aeration Kit for Ponds up to 1 acre

• Maximum operation depth of 50 feet

• 1/4 hp Stratus SRC25 Gen 2 compressor with two year warranty

• Includes hardware for either post mounted OR ground mounted cabinet placement!

• Outlet assembly with pressure relief, heat reducing hose and 3/8″ connections

• QS1 Quick Sink self seighted single head air diffuser

• 100′ of 3/8″ Quick Sink weighted tubing

• Approximately 2.3 cfm of air flow per diffuser

• Typical operation cost of $0.40 per 24 hours at .09¢ per kWh, actual cost may vary

• 2 Year Warranty on Compressor

• 5 Year Warranty on Tubing, Diffusers and Cabinet

• Tubing   100 ft 3/8" Quick Sink

• Horsepower   1/4 HP

• Voltage   115v or 230v

• Amps   1.7/0.9 amps (at 10' operating depth)

• Maximum Air Flow   2.3 cfm

• Maximum Depth   50'

• In Aeration Acres   Up to 1 acre

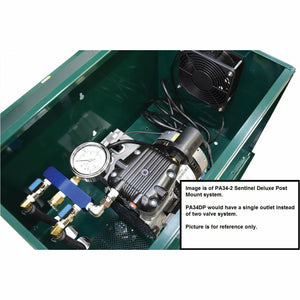

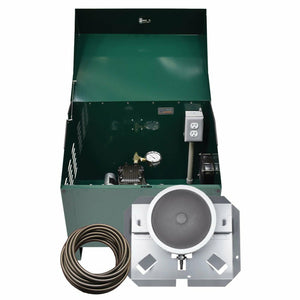

Complete Sentinel Deluxe Aeration System for ponds up to one acre depending on shape and depth of pond. 1/4 hp Rocking Piston SRC25 compressor, 2.3 cfm, 1.7 amps, aerates up to 50′ deep. PA34DP kit includes compressor, outlet assembly, pressure gauge and pressure relief valve all mounted in SC18 or SC22 Post Mount or Ground Mount lockable steel cabinet with cooling fan and electrical outlet installed. Kit also includes QS1 Quick Sink air diffuser, 100′ of 3/8″ Quick Sink tubing and fittings for connections.
