- Quick Facts
- Size Guide
- 300 gallons-per-minute flow rate.
- Motor specs: 100 volt, three-phase, 60 Hz, 8.6 amps and 810 watts.

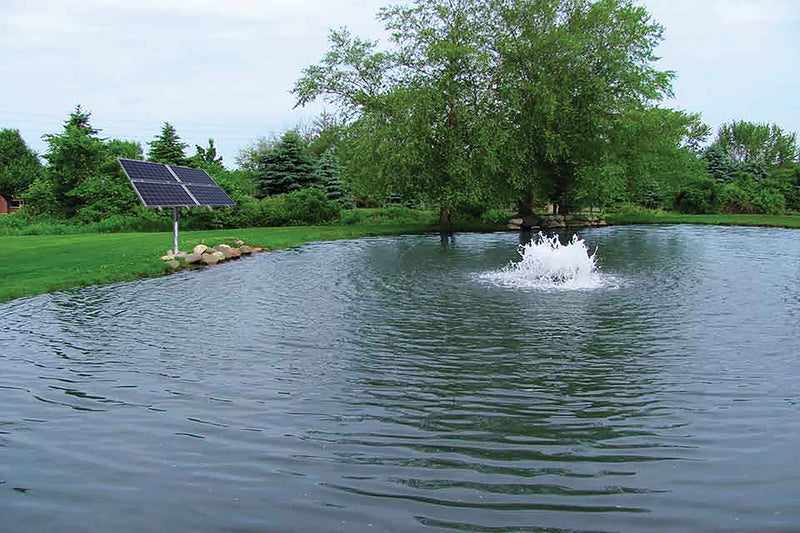

- The standard unit includes four 325-watt 60-cell solar panels, each high-efficiency mono-crystalline panel measuring 39" x 65".
- 12-gauge, submersible electric power cord provided is 70 feet in length, and longer available.
- 5-year motor warranty.
- No maintenance is required.
- 32" minimum pond depth required.
- Two 30-pound weights or concrete blocks are required for anchoring (not included).
Our Solar Boilermaker Aerator (4-Panel): clean, eco-friendly, affordable aeration for large, remote ponds.
Have a large pond with no electricity source? Our 4-Panel Solar Boilermaker Aerator with variable-speed, submersible induction Franklin Electric motor moves up to 300 gallons per minute.
One of the most environmentally friendly water aerators on the market, the Boilermaker was designed to minimize water display and maximize pond health. Its low-profile design and submersible, solar-powered motor create high-volume water circulation for maximum oxygen transfer. This added oxygen not only does wonders for your fish, it's also key to rapidly breaking down decaying matter at the bottom of your pond. And more oxygen means less muck over time. Meanwhile, the Boilermaker's powerful surface currents eliminate surface algae and floating debris quickly.
Made for daytime aeration, the unit powers up with the sun, operates at variable speeds, and shuts down after dark. Its solar PV array panels bring water flow gradually up to capacity in variable sunlight—all without the costly, high-maintenance batteries that many solar aerators demand. Its motor is stainless steel and oil-free, making it exceptionally durable and maintenance-free.
To top it all off, the Boilermaker works great as a pond de-icer in winter, too. Like all Scott Aerator Company water features, the Boilermaker was engineered to eliminate the need for costly, time-consuming winterizing products and procedures. Simply leave your aerator in the water, turn off its power supply, and forget about it until the water thaws in the spring. Then just re-establish power to the unit and you’re good to go. All components will withstand sub-zero conditions without damage.

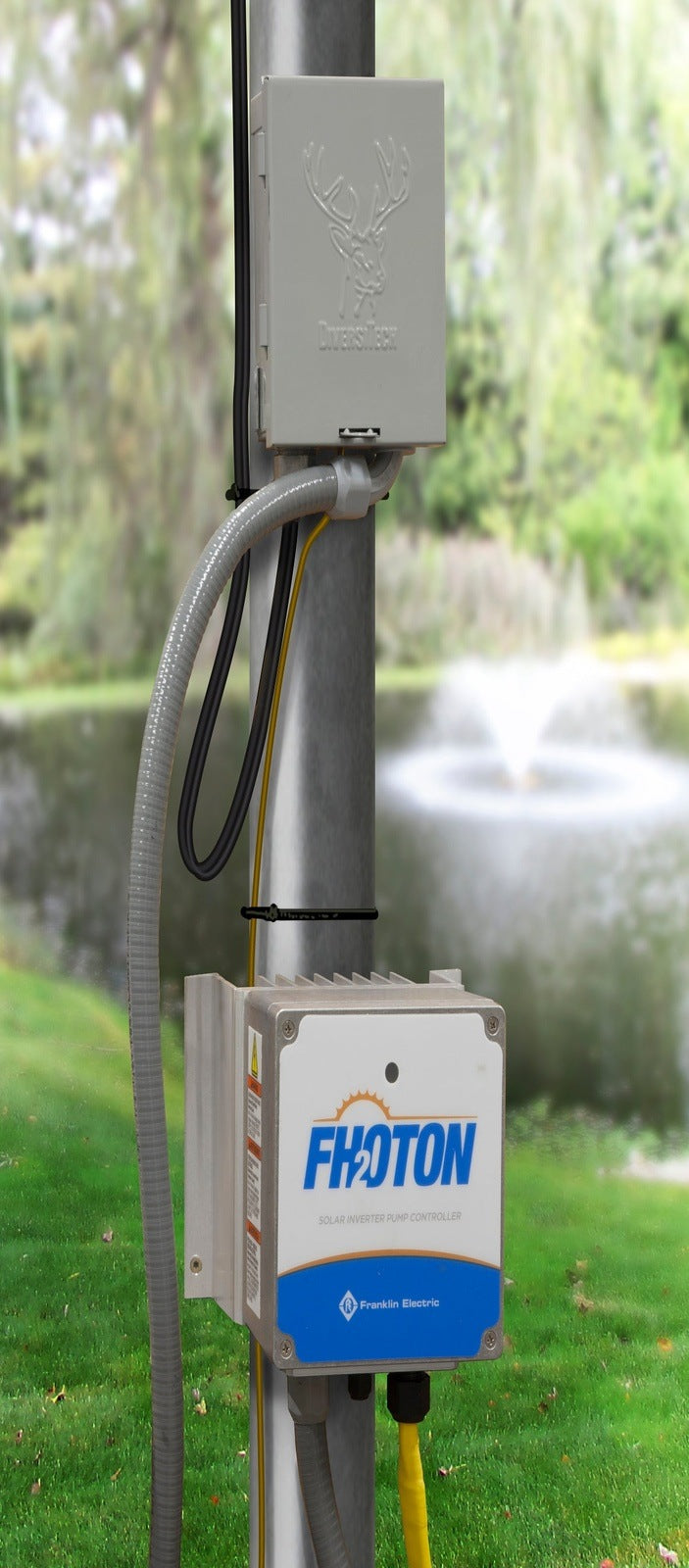

This simple-to-install system comes complete with the Boilermaker aerator, four solar panels with frame, disconnect box, Fhoton™ drive solar inverter, and all required wiring components. You just need to supply the vertical pole for the panels and frame, concrete footing for the pole, and two anchor ropes with weights or tethers for the aerator.
The Boilermaker is proudly manufactured in the USA and carries an unconditional, 5-year motor warranty. This unit comes standard with 70 feet of heavy-duty, 12-gauge, submersible power cord. Greater lengths are available.
The Boilermaker solar aerator is designed for fresh or salt water.
Please disconnect the power source when swimmers are present.
|Minimum Water Depth
|300 gallons per minute
|100V (Three Phase)
|Motor & Pump
|Non-Electric Fountain Components
|Light Fixtures & Brackets
All standard Scott Aerator Company products are warranted to the original owner for five years against motor defects in materials or workmanship, no questions asked. All other product components are warranted for one year from the date of purchase. Scott Aerator Company will replace failed parts under warranty when the defective unit is returned to the factory, shipping prepaid by the customer if factory inspection establishes that the part was defective. The unit must be returned to the factory prior to shipment of replacement parts. All parts replaced under this warranty if requested will be returned with shipping prepaid. Neither Scott Aerator Company nor ProtoPond will not be liable for consequential damage nor for any costs associated with removal or attempts to repair components in the field.
Amp Draw & Watts
|3/4 HP 100V
