9-Acre ProLake³ Diffused Pond Aeration System

by ProLake
Original price $7,050.53 - Original price $7,221.42
Original price
$7,050.53
$7,050.53 - $7,221.42
Current price $7,050.53
SKU PL-3.9

Quick Facts



  • Aerates Ponds/Lakes Up To 9 Acres
  • Improves Water Clarity & Quality
  • Oxygenates Entire Water Column
  • Programmable Timer
  • Available In 115V or 230V
  • 2 Year Warranty



Applications



  • HOA’s
  • Golf Courses
  • Recreational Ponds & Lakes
  • Retention Ponds
  • Industrial Retention Ponds
  • Farm Ponds
  • Ski Parks
  • Aquaculture Ponds
  • Zoological Display



Specs



Aeration System

ProLake³ 3.10

Item Number

PL-3.10

Maximum Pond Size

Up To 10 Acres

115V or 230V Compressor

3

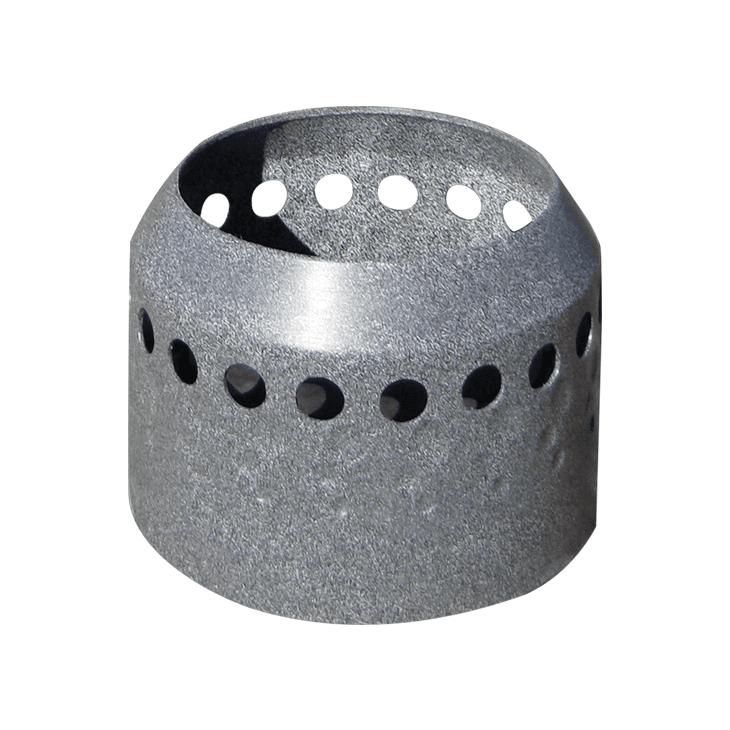

Duraplate™ Diffusers

10

Maximum Diffuser Depth

50 Feet

Max CFM

Up To 15.9

AMPS

12.9/3 ½ HP 115V Compressors

Watts

655

Alpine™ 1/2" Weighted Airline

Not Included

Programmable Timer

Not Included

Manifold

3-4 Port

Pressure Gauge

1

Cooling Fan

1

Level-Aer™ Equipment Pad (Suggested)

Not Included

Decibels/Operational Sound

50/60 DB

1” ASTM Cert. Acoustical Sound-Deadening Foam

Included

Dimensions



Cabinet

24"W x 24"L x 16"T

Alpine™ ½" Weighted Airline

1/2" ID x 1" OD

Level-Aer™ Equipment Pad

30" x 30" x 3"

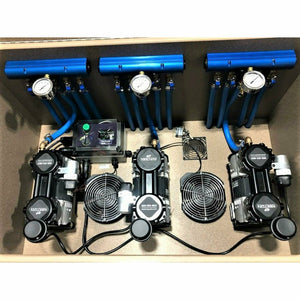

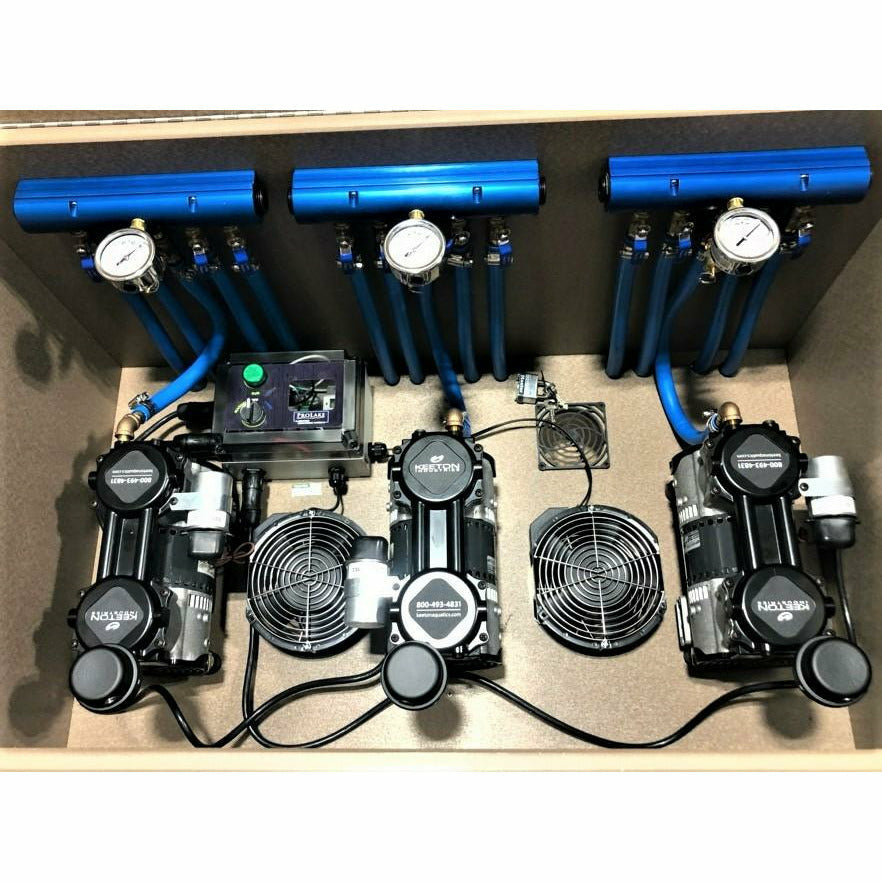

ProLake³ Aeration Systems are designed to clean and clear ponds and lakes measuring up to 9 surface acres. ProLake³ systems offer two powerful ½ horsepower compressors capable of delivering 10.6 cubic feet of air per minute to our non-clogging, self-cleaning Duraplate™ diffusers. We top it all off with high volume cooling blowers, a programmable timer and fully adjustable, brushed aluminum manifolds. All housed in a durable, sound-deadening cabinet. The result is a high-end, energy efficient aeration system that will keep your pond clean and problem free for many years to come.

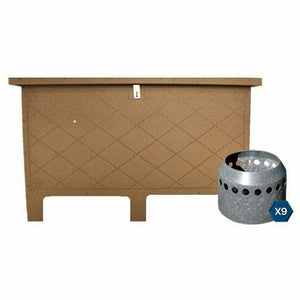

ProLake³ 3.9

  • 3 = Number of Compressors Included In The System
  • 9 = Number of Diffusers Included In The System





      • FREE FedEx and UPS GROUND SHIPPING (4-5 DAYS)
      • Ships to: USA (Lower 48 states)
      • PLEASE NOTE: WE DO NOT SHIP TO ANYWHERE OUTSIDE OF THE CONTINENTAL 48 UNITED STATES
      • Shipping & Return Policy
      • Order Tracking

      Due to the Covid-19 pandemic, lead times may be longer than normal. Reach out to our team with any questions.

      Customer Reviews

      No reviews yet
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)

      It's simple! When you order an item from ProtoPond, you unlock free lifetime replacement parts for that item. Whether it's a fountain, aerator, circulator, filtration system, etc., we offer lifetime-guaranteed free replacement parts! If you are a past customer of ours and need to order a replacement part, simply call our office at (515) 635-3182 or email support@protopond.com and one of our team members will assist you with your FREE replacement part.

      \
