2-Acre Pond PA50 Rotary Vane Aeration System

Quick Facts

• Aeration Kit for Ponds up to 2 acres

• Maximum operation depth of 18 feet

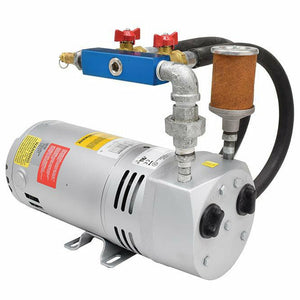

• 1/4 hp Stratus RV33 Rotary Vane compressor

• Two valve manifold with pressure relief

• Valved outlet with heat reducing hose and 1/2″ connections

• Two QS2 Quick Sink self weighted dual head air diffusers

• 200′ 1/2″ Quick Sink weighted tubing

• Approximately 2.2 cfm of air flow per diffuser

• Typical operation cost of $1.31 per 24 hours at .09¢ per kWh, actual cost may vary

• PA50W requires weather protection for the compressor

• 1 Year Warranty on Compressor

• 5 Year Warranty on Tubing and Diffusers

• Tubing   200 ft 1/2" Quick Sink

• Horsepower   1/4 HP

• Voltage   115v or 230v

• Amps   5.0/2.5 amps

• Maximum Air Flow   4.5 cfm

• Maximum Depth   18'

• In Aeration Acres   Up to 2 acres

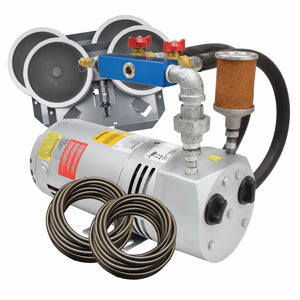

Complete aeration system for ponds up to two acres depending on shape and depth of pond. 1/4 hp Rotary Vane RV33 compressor, 4.5 cfm, 2.3 amps, aerates up to 18′ deep. The PA50W kit also includes two QS2 Quick Sink air diffusers, dual valved outlet assembly with pressure relief valve, 200′ of 1/2″ Quick Sink tubing, fittings and clamps.
