Outdoor Water Solutions: Pond Aeration Bubbler / AerMasterPro / 1.5HP / Up to 10 Acres

Pond Aerator Bubbler | AerMaster Pro XL | 1.5HP | Up to 10 Acres

The AerMaster Pro XL Series delivers industry-leading bottom diffused aeration for extra-large and deep ponds and lakes. Powered by dual ¾ HP Quantum™ rocking piston compressors, this system provides exceptional oxygen transfer, wide-area coverage, and ultra-reliable performance.

Designed for ponds up to 6–10 acres, the Pro XL Series is ideal for large-scale properties requiring maximum coverage without sacrificing quiet operation or ease of maintenance.

SPECIFICATIONS:

• AerMaster Pro 1.5HP
• Compressor: (2) 3/4hHP OWS Quantum™ Rocking Piston
• Voltage: 115v or 230v
• Airline: Not Included. System requires 5/8" Weighted Airline (select needed length as an add on)

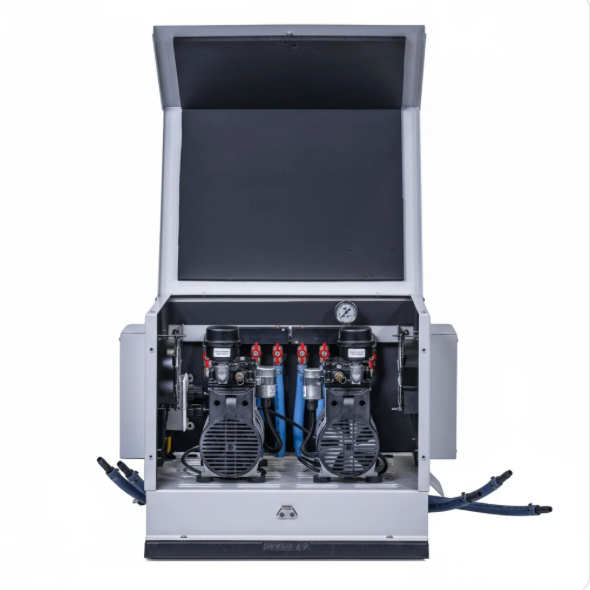

• Cabinet: Powder-coated aluminum, locking, dual cooling fans, safety guards
• Diffusers: Optimal Air™ self-weighted rubber membrane
• Safety Features: Class “A” GFCI (115v), pressure relief valve, pressure gauge
• Sound Kit (Included): Cabinet insulation, fan box cover, durable equipment pad
• Warranty: 3-Year Compressor, 5-Year Diffusers/Base, Lifetime Cabinet

CORE FEATURES:

• Dual ¾ HP Quantum™ Compressors – High-output rocking piston technology.
• Powder-Coated Aluminum Cabinet – Lifetime rust warranty.
• Multiple Cooling Fans – Dual 6” fans per compressor for optimal temperature control.
• Tool-Free Service Access – Fully removable lid with easy component access.
• 0–30 PSI Gauge & Pressure Relief Valve – Precise system monitoring.
• 115V GFCI / 230V ELCI Options
• 3-Year System Warranty
• Sound Kit Included

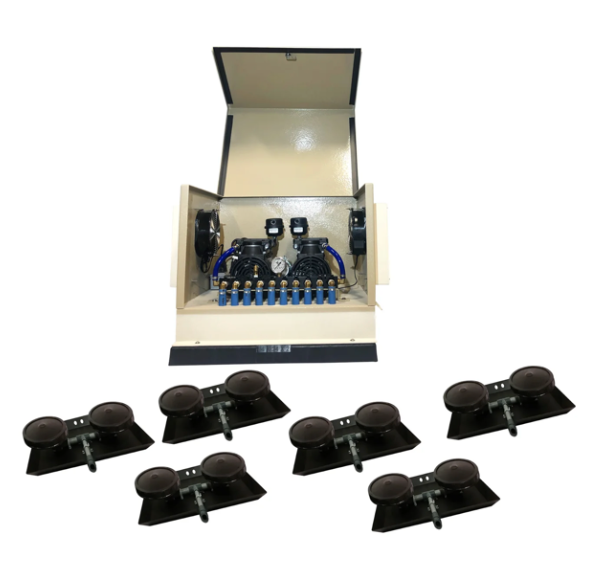

AerMaster Pro XL 11

• Recommended Pond Size: Up to approximately 6 acres
• Compressors: Two ¾ HP Quantum™ compressors
• Diffusers: Six 9" Double Disc low-PSI diffusers with self-sinking bases
• Manifold: Six-valve manifold for precision airflow control
• Airline: ½" weighted airline not included
• Ideal For: Large, deep ponds requiring balanced wide coverage

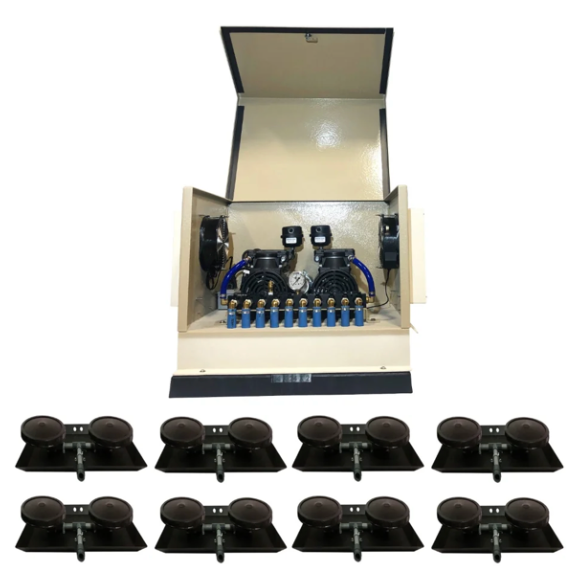

AerMaster Pro XL 12

• Recommended Pond Size: Up to approximately 10 acres
• Compressors: Two ¾ HP Quantum™ compressors
• Diffusers: Eight 9" Double Disc low-PSI diffusers with self-sinking bases
• Manifold: Eight-valve manifold for advanced control
• Airline: ½" weighted airline not included
• Ideal For: Maximum deep-water aeration and broad surface coverage

Every AerMaster Pro XL system includes a factory-installed Sound Kit designed for quieter operation and enhanced protection.

• Precast Composite Equipment Pad – Stable, vibration-reducing base.
• Fan Box Covers – Reduces operational noise and protects from debris.
• Acoustical Sound Foam – Industrial insulation for sound reduction and thermal protection.

This upgrade makes the Pro XL Series ideal for residential estates, golf courses, HOA communities, and noise-sensitive environments.
