Kasco Marine: VFX Series Aerating Display Fountain for Small Ponds to Large Ponds

Load image into Gallery viewer, Kasco Marine: VFX Series Aerating Display Fountain for Small Ponds to Large Ponds

Kasco Marine: VFX Series Aerating Display Fountain for Small Ponds to Large Ponds

Name: Kasco Marine: VFX Series Aerating Display Fountain for Small Ponds to Large Ponds
Brand: Kasco Marine
SKU: 5.1VFX200
Price: 1662.0 USD
Availability: InStock

$9,577.00

Sale Sold out

Choose a Pump Size

Cord Length

Quantity must be 1 or more

Quick Facts
Resources
Specs

Quick Facts

Floating pond & lake fountain built specifically for aeration.

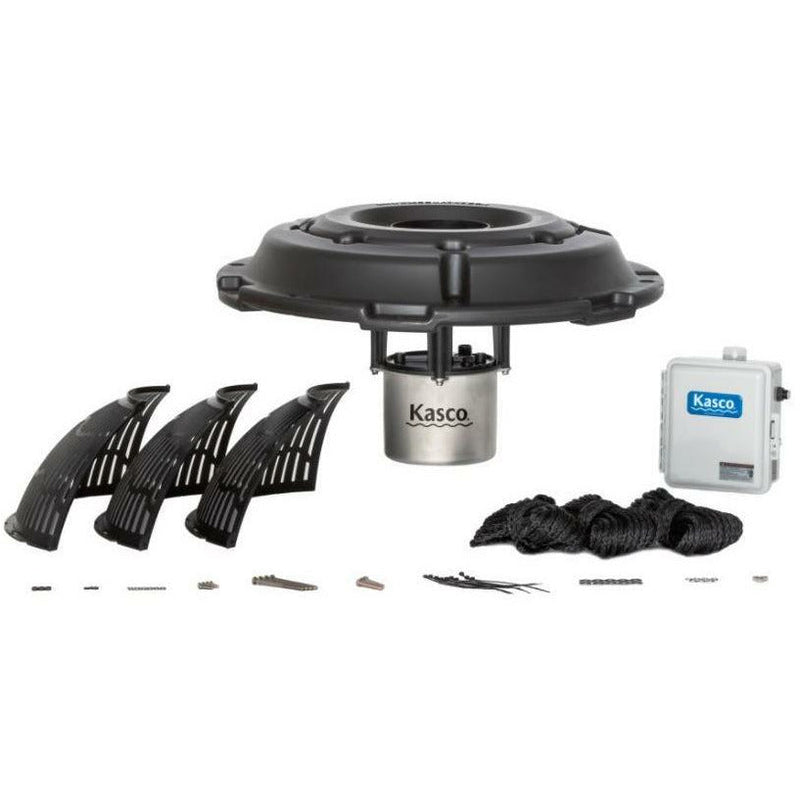

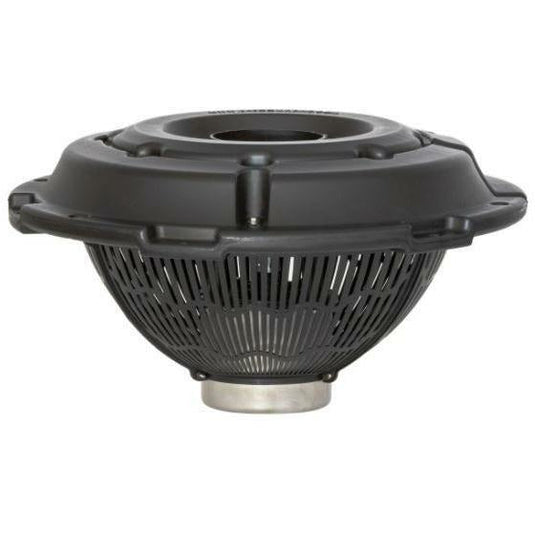

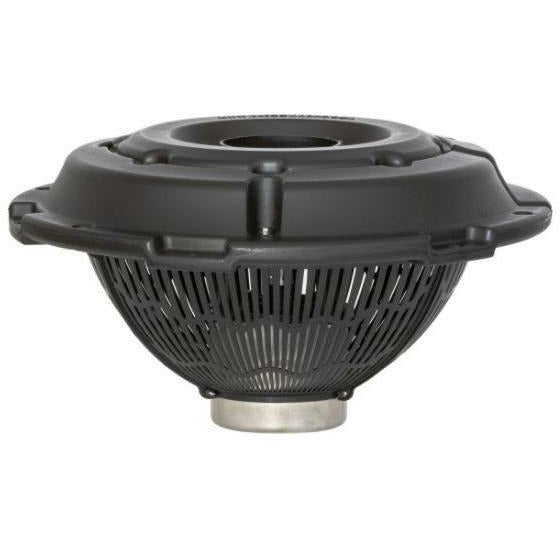

Package comes with fountain pump, float, bottom screen, control panel with GFCI protection, power cord and mooring lines.

Available in 1/2 HP, 3/4 HP, 1 HP, 2 HP and 5 HP.

Available in 120V or 240V.

If you require 3 phase, please call for pricing.

2 year warranty on 1/2 HP, 3/4 HP and 1HP units.

3 year warranty on 2 HP and 5 HP units.

Fountain Size	Spray Size	Pond Size Aerated

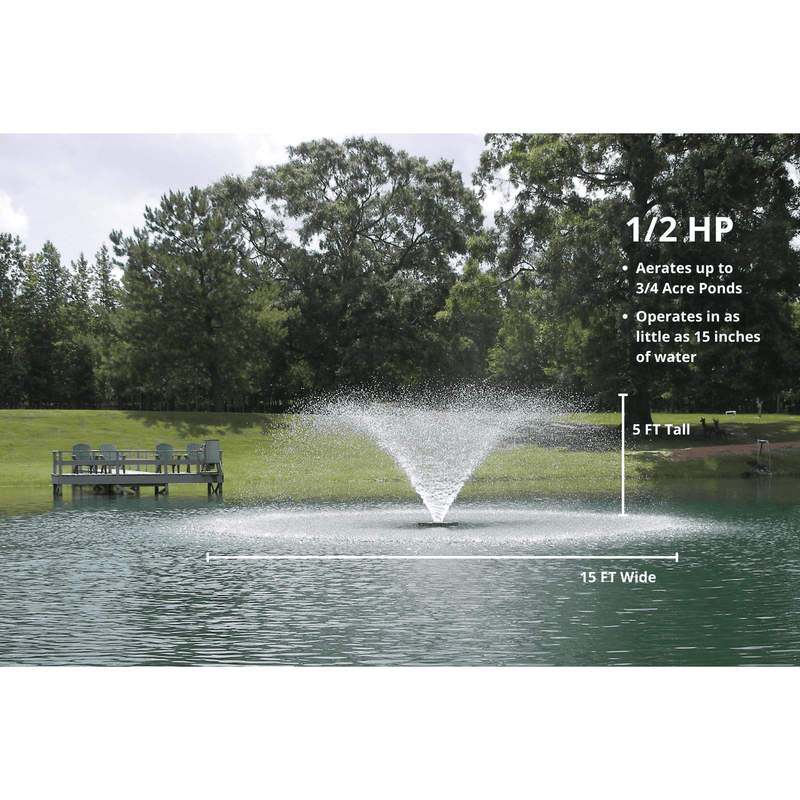

1/2 HP	5’ H x 15’ W	3/4 Acre

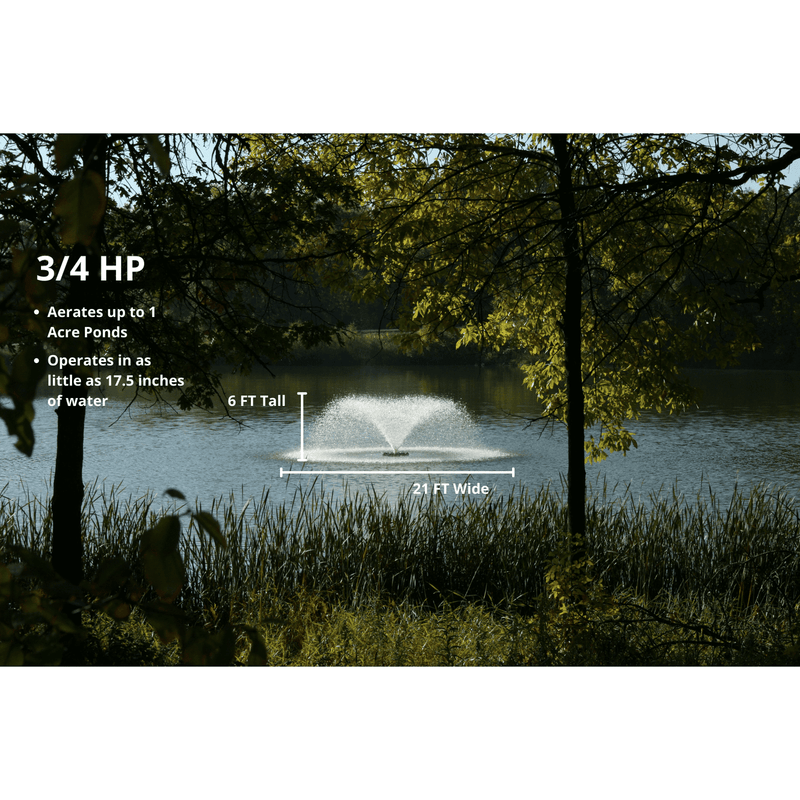

3/4 HP	6’ H x 21’ W	1 Acre

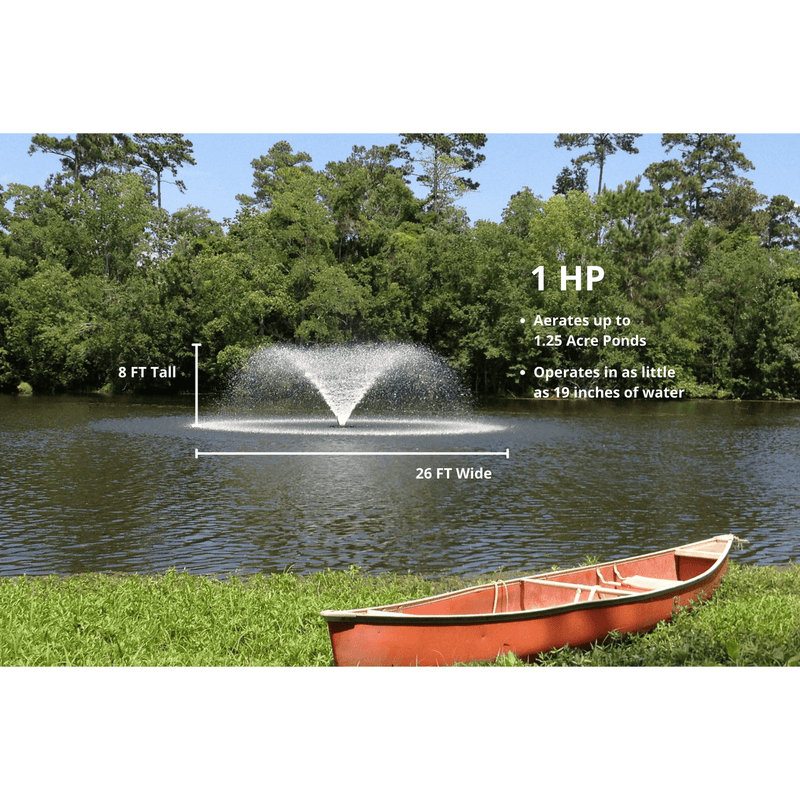

1 HP	8’ H x 26’ W	1.25 Acre

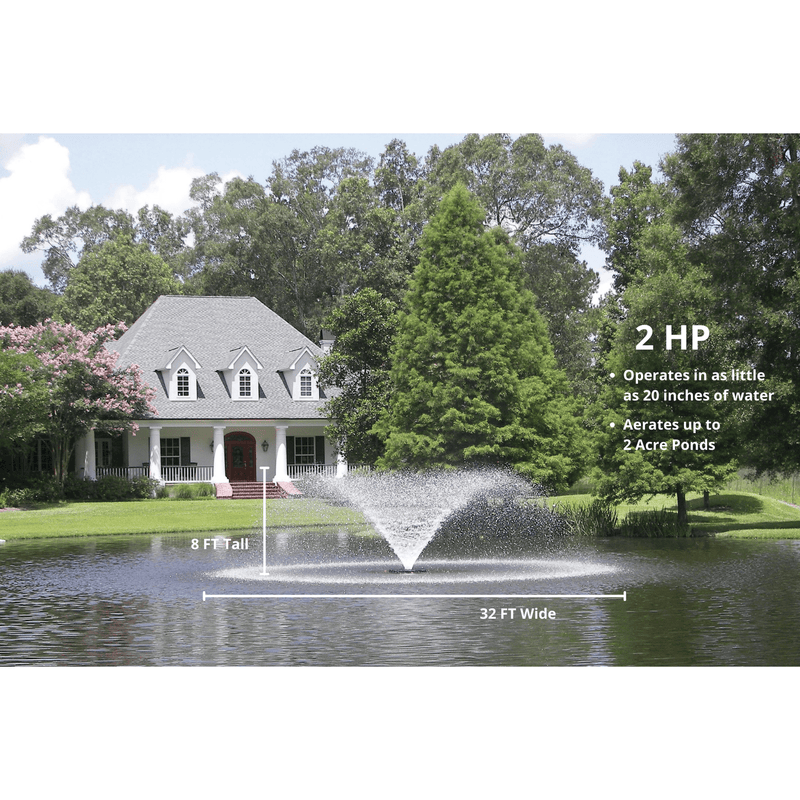

2 HP	8’ H x 32’ W	2 Acres

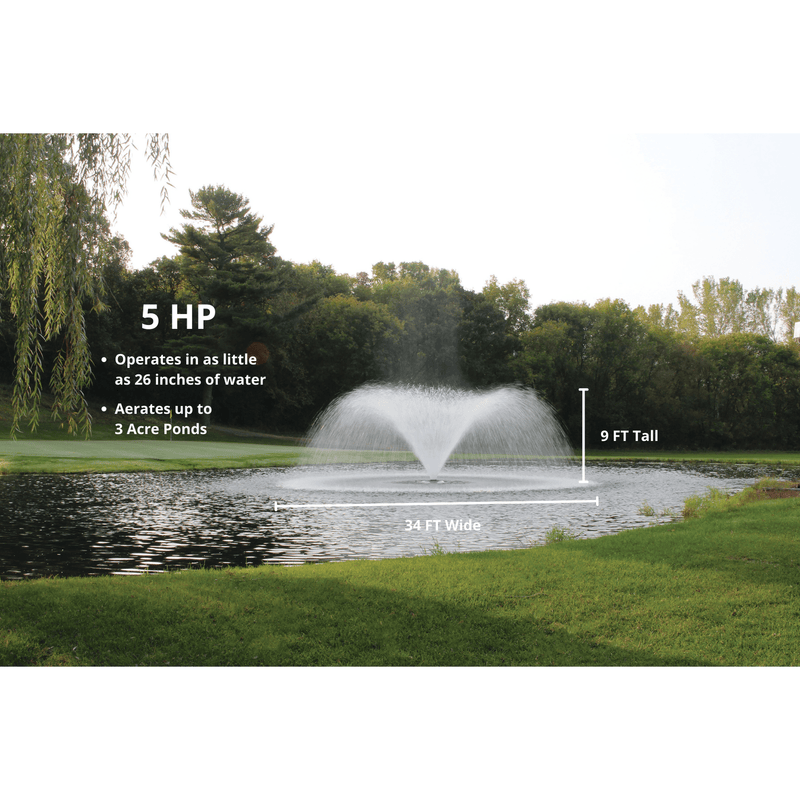

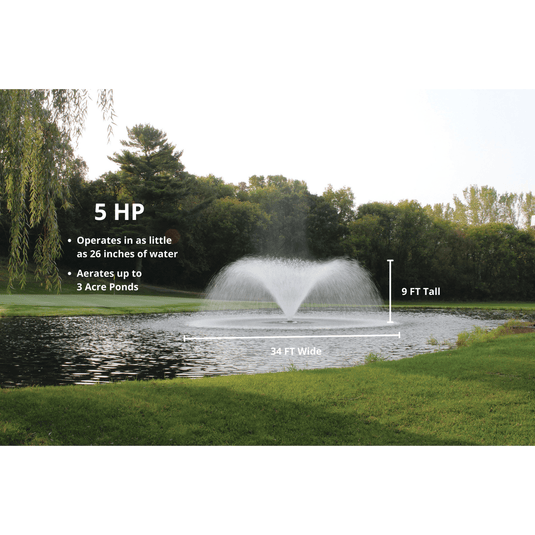

5 HP	9' H x 34' W	3 Acres

Resources

Fountain Flyer (pdf)

1/2 HP - 1 HP VFX Series Owner's Manual

2 HP - 5 HP VFX Series Owner's Manual

Waterglow Lighting Brochure

RGB Instruction Manual

RGB Control Panel Instructions

RGB Fixture Connection Instructions

RGB Fixture Replacement Instructions

RGB Cord Splice Instructions

LED Composite Lighting Manual

LED Composite Cord Splice Instructions

Specs

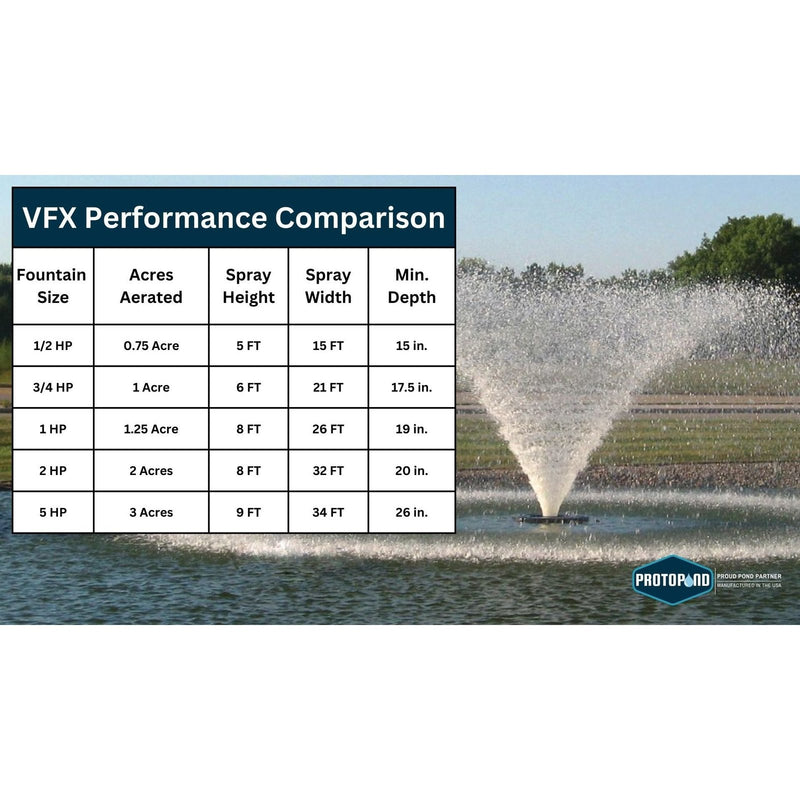

Display Size & Aeration Coverage

Horsepower	Display Size	Pond Size Aerated
1/2 HP	5’ H x 15’ W	3/4 Acre
3/4 HP	6’ H x 21’ W	1 Acre
1 HP	8’ H x 26’ W	1.25 Acre
2 HP	8’ H x 32’ W	2 Acres
5 HP	9' H x 34' W	3 Acres

Minimum Water Depth

Horsepower	Minimum Water Depth
1/2 HP	15 inches
3/4 HP	17.5 inches
1 HP	19 inches
2 HP	20 inches
5 HP	26 inches

Electrical

HP	Voltage	Phase	Amps
1/2	120V	1	5.6
3/4	120V, 240V	1	7.3, 3.7
1	120V, 240V	1	11.3, 5.7
2	240V	1, 3	11, 7.5
5	240V	1, 3	20,16

Power Cord Length

Motor Size	Available Cord Length (ft.)
3/4 HP 120V	50, 100, 150, 200
3/4 HP 240V	50, 100, 150, 200, 250, 300, 400, 500
1 HP 120V	50, 100, 150, 200
1 HP 240V	50, 100, 150, 200, 250, 300, 400, 500
2 HP 240V	50, 100, 150, 200, 250, 300, 400, 500
5 HP 240V	100, 150, 200, 250, 300, 400, 500
